[MMEngine] Tutorial - Runner

Runner

- MMEngine안의 integrator로 모든 module 및  framework를 책임짐.

- Runner's API documentation



Simple Example

import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils.data import Dataset

from mmengine.model import BaseModel
from mmengine.evaluator import BaseMetric
from mmengine.registry import MODELS, DATASETS, METRICS


@MODELS.register_module()
class MyAwesomeModel(BaseModel):
    def __init__(self, layers=4, activation='relu') -> None:
        super().__init__()
        if activation == 'relu':
            act_type = nn.ReLU
        elif activation == 'silu':
            act_type = nn.SiLU
        elif activation == 'none':
            act_type = nn.Identity
        else:
            raise NotImplementedError
        sequence = [nn.Linear(2, 64), act_type()]
        for _ in range(layers-1):
            sequence.extend([nn.Linear(64, 64), act_type()])
        self.mlp = nn.Sequential(*sequence)
        self.classifier = nn.Linear(64, 2)

    def forward(self, data, labels, mode):
        x = self.mlp(data)
        x = self.classifier(x)
        if mode == 'tensor':
            return x
        elif mode == 'predict':
            return F.softmax(x, dim=1), labels
        elif mode == 'loss':
            return {'loss': F.cross_entropy(x, labels)}


@DATASETS.register_module()
class MyDataset(Dataset):
    def __init__(self, is_train, size):
        self.is_train = is_train
        if self.is_train:
            torch.manual_seed(0)
            self.labels = torch.randint(0, 2, (size,))
        else:
            torch.manual_seed(3407)
            self.labels = torch.randint(0, 2, (size,))
        r = 3 * (self.labels+1) + torch.randn(self.labels.shape)
        theta = torch.rand(self.labels.shape) * 2 * torch.pi
        self.data = torch.vstack([r*torch.cos(theta), r*torch.sin(theta)]).T

    def __getitem__(self, index):
        return self.data[index], self.labels[index]

    def __len__(self):
        return len(self.data)


@METRICS.register_module()
class Accuracy(BaseMetric):
    def __init__(self):
        super().__init__()

    def process(self, data_batch, data_samples):
        score, gt = data_samples
        self.results.append({
            'batch_size': len(gt),
            'correct': (score.argmax(dim=1) == gt).sum().cpu(),
        })

    def compute_metrics(self, results):
        total_correct = sum(r['correct'] for r in results)
        total_size = sum(r['batch_size'] for r in results)
        return dict(accuracy=100*total_correct/total_size)



from torch.utils.data import DataLoader, default_collate
from torch.optim import Adam
from mmengine.runner import Runner


runner = Runner(
    # your model
    model=MyAwesomeModel(
        layers=2,
        activation='relu'),
    # work directory for saving checkpoints and logs
    work_dir='exp/my_awesome_model',

    # training data
    train_dataloader=DataLoader(
        dataset=MyDataset(
            is_train=True,
            size=10000),
        shuffle=True,
        collate_fn=default_collate,
        batch_size=64,
        pin_memory=True,
        num_workers=2),
    # training configurations
    train_cfg=dict(
        by_epoch=True,   # display in epoch number instead of iterations
        max_epochs=10,
        val_begin=2,     # start validation from the 2nd epoch
        val_interval=1), # do validation every 1 epoch

    # OptimizerWrapper, new concept in MMEngine for richer optimization options
    # Default value works fine for most cases. You may check our documentations
    # for more details, e.g. 'AmpOptimWrapper' for enabling mixed precision
    # training.
    optim_wrapper=dict(
        optimizer=dict(
            type=Adam,
            lr=0.001)),
    # ParamScheduler to adjust learning rates or momentums during training
    param_scheduler=dict(
        type='MultiStepLR',
        by_epoch=True,
        milestones=[4, 8],
        gamma=0.1),

    # validation data
    val_dataloader=DataLoader(
        dataset=MyDataset(
            is_train=False,
            size=1000),
        shuffle=False,
        collate_fn=default_collate,
        batch_size=1000,
        pin_memory=True,
        num_workers=2),
    # validation configurations, usually leave it an empty dict
    val_cfg=dict(),
    # evaluation metrics and evaluator
    val_evaluator=dict(type=Accuracy),

    # following are advanced configurations, try to default when not in need
    # hooks are advanced usage, try to default when not in need
    default_hooks=dict(
        # the most commonly used hook for modifying checkpoint saving interval
        checkpoint=dict(type='CheckpointHook', interval=1)),

    # `luancher` and `env_cfg` responsible for distributed environment
    launcher='none',
    env_cfg=dict(
        cudnn_benchmark=False,   # whether enable cudnn_benchmark
        backend='nccl',   # distributed communication backend
        mp_cfg=dict(mp_start_method='fork')),  # multiprocessing configs
    log_level='INFO',

    # load model weights from given path. None for no loading.
    load_from=None,
    # resume training from the given path
    resume=False
)

# start training your model
runner.train()

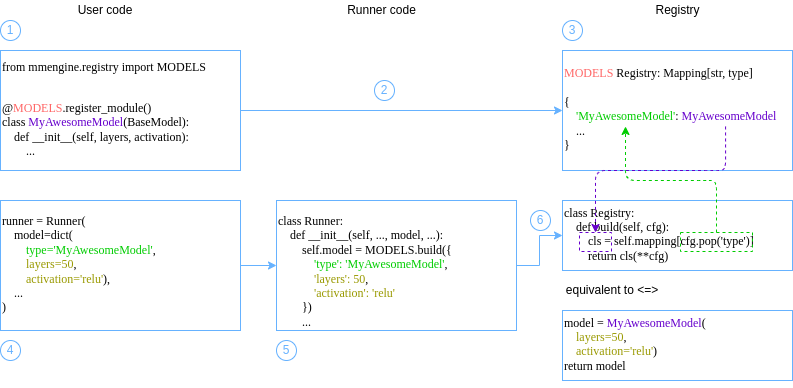

- 인자는 dict형태로 전달됨. MMEgine's Style of runner construction(manual construction / contruction via registry)

from mmengine.model import BaseModel
from mmengine.runner import Runner
from mmengine.registry import MODELS

@MODELS.regieter_module()
class MyModel(BaseModel):
  def __init__(self, arg1, arg2):
     pass

runnder = Runner(
  model = dict(
    type = "MyModel",
    arg1 = xxx,
    arg2 = xxx),
    ...
  )

model = MyModel(arg1=xxx, arg2=xxx)
runner = Runner(
  model = model,
  ...
  )



- Config 파일이 주어졌을 때

from mmengine.config import Config
from mmengine.runner import Runner
config = Config.fromfile('example_config.py')
runner = Runner.from_cfg(config)
runner.train()

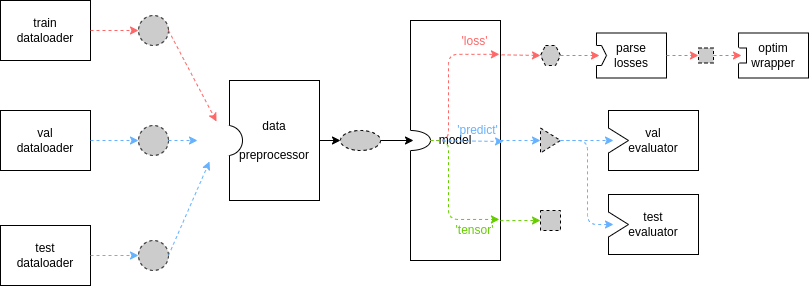

Basic Dataflow

- 회색으로 채워진 도형은 서로 다른 데이터 형식, 실선 상자는 module과 method를 나타냄

- 상속과  override로 인해 diagram이 항상 유지되는 것은 아님.

- train시 붉은 실선 경로를 따라 진행. valid나 test시 파란 실선 경로를 따라 진행. debugging시 초록 실선 경로를 따라 진행



- DataLoader, Model과 Evaluator사이의 data format convention

  - data_preprocessor를 통과하여 model로 갈때 unpacking이 이루어짐

  - data_samples는 model의 outputs를 받지만 data_batch는 data_loader에서 나온 raw data를 받음.

# training
for data_batch in train_dataloader:
    data_batch = data_preprocessor(data_batch)
    if isinstance(data_batch, dict):
        losses = model.forward(**data_batch, mode='loss')
    elif isinstance(data_batch, (list, tuple)):
        losses = model.forward(*data_batch, mode='loss')
    else:
        raise TypeError()

# validation
for data_batch in val_dataloader:
    data_batch = data_preprocessor(data_batch)
    if isinstance(data_batch, dict):
        outputs = model.forward(**data_batch, mode='predict')
    elif isinstance(data_batch, (list, tuple)):
        outputs = model.forward(**data_batch, mode='predict')
    else:
        raise TypeError()
    evaluator.process(data_samples=outputs, data_batch=data_batch)
metrics = evaluator.evaluate(len(val_dataloader.dataset))



- data 전처리는 data transforms module에서 처리를 권장하지만 batch와 관련된 처리는  data_preprocessor에서 구현 가능.
